XR Adjustable Drop Hitch

SOLID

XR Adjustable Drop Hitch

SKU SH-XR-DROP

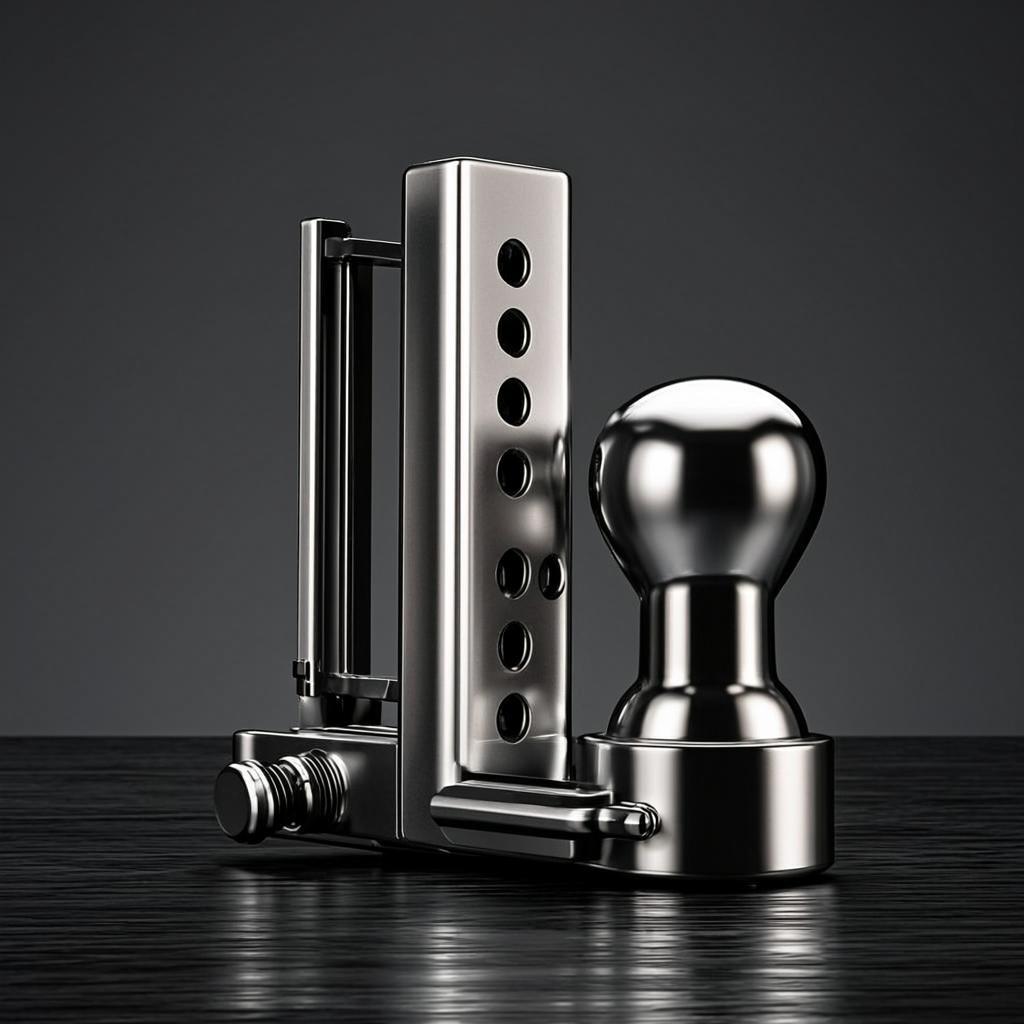

Solid steel channel hitch with 8- or 10-hole adjustment, flip-around drop/rise design and interchangeable ball mounts. Rated up to 20,000 lb GTW by shank size.

  • 20,000 lb GTW
  • 2,000 lb tongue
  • 2 · 2-1/2 · 3″ receiver
  • 0″–9″ drop
  • 2 · 2-5/16″ ball

Price range: $217.49 through $249.99

  • 1-year limited warranty
  • 60-day smooth-towing guarantee
  • Made in Jamestown, ND
Capacity20,000 lb GTW
Receiver2 · 2-1/2 · 3″
Drop range0″ – 9″
Ball2 · 2-5/16″
TechnologySolid steel
Warranty1-year limited
Technology detail

Why this product

Why solid steel

Some jobs are about absolute strength and simplicity. The channel-adjustable design gives you the drop range you need with nothing to service — rated capacities from the catalog, pinned into position, ready for work.

  • Channel adjustment for exact drop
  • No maintenance, no settings
  • Honest catalog ratings for every shank

Engineered for

Equipment trailersUtility & dumpCar haulers

Installation

  1. 01Measure receiver height and trailer coupler height with the truck loaded as you tow.
  2. 02Set drop: choose the pin hole that levels the trailer — the configurator suggests one for your rig.
  3. 03Slide the shank into the receiver, pin it, attach the ball mount and safety chains.
  4. 04Tune: set air pressure to match tongue weight (air ride models), re-check after loading.

Questions, answered from the data

Which receivers does it fit?

It fits 2″, 2-1/2″, 3″ receiver tubes. Measure the inside opening of your receiver tube if you are unsure — most half-ton trucks are 2″, many 3/4- and 1-ton trucks are 2″ or 2-1/2″.

How much drop do I need?

This configuration covers 0″ to 9″ of drop. Measure receiver height and coupler height with the truck loaded as you tow; the difference is the drop you need to keep the trailer level.

Is it rated for my trailer?

It is rated for 20,000 lb gross trailer weight. Compare your loaded trailer weight — water, gear and cargo included — against the rating, and keep tongue weight within the stated limit. Use the “Check my truck” panel above for an explained answer.

What is the warranty?

1-year limited warranty plus a 60-day smooth-towing guarantee with free returns — the manufacturer stands behind the ride.

Is this the official Shocker Hitch store?

No. This is an independent concept demonstration built to show a better way to present and configure towing products. Specifications shown are compiled from public sources.

Reviews

There are no reviews yet.
